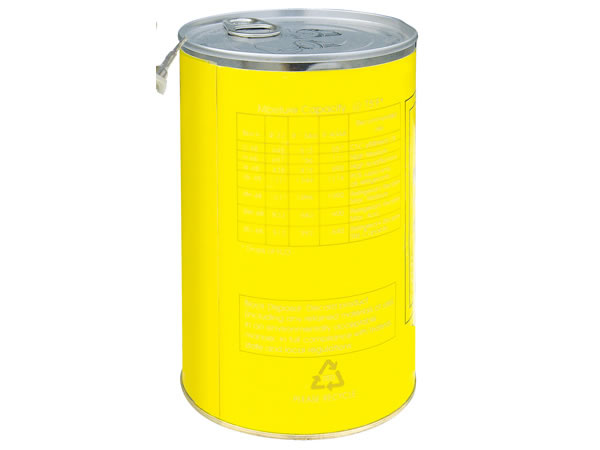

The liquid line filter drier core, consisting of a filter drier, suction filter and oil filter, has standard specifications to fit most refrigerating equipment and is packaged within a quality metal canister which prevents oil, impurities, and dust from entering the core.
Of a modular design, this liquid line receiver-dehydrator core has a quality solid core that uses a special mixture with a high capacity for absorbing water and acids to protect the refrigerating system from any fluid and solid contaminants. We treat these filter drier cores a spray plastic coating so that the cores remain durable and long lasting.
Features of Liquid Line Filter Drier Core
Based on the design of our strong R&D team, our liquid line filter drier core has the following features:
1) Even in abnormal working conditions, this filter drier core effectively absorbs moisture, acids, impurities, and other contaminants;
2) This core plays an important role in protecting refrigerating systems and keeping compressors clean and in good working order.
Technical Specifications of Liquid Line Filter Core
| Part No. | Dimensions (inches) | Moecular sieve | Activa ted aluminium | Carbon | ||
| D1 | D2 | H | ||||
| 1.76 | 3.70 | 5.50 | 80% | 20% | - | |
| 1.76 | 3.70 | 5.50 | 100% | - | - | |
| 1.76 | 3.70 | 5.50 | 75% | 20% | 5% | |
| 1.76 | 3.70 | 5.50 | 95% | - | 5% | |
| 2.90 | 4.80 | 6.50 | 80% | 20% | - | |
| 2.90 | 4.80 | 6.50 | 100% | - | - | |
| 2.90 | 4.80 | 6.50 | 75% | 20% | 5% | |
| 2.90 | 4.80 | 6.50 | 95% | - | 5% | |
