Home » Products » A/C Duct (Duct for Air Conditioning) » A/C Duct (Duct for Air Conditioning)

A/C Duct (Duct for Air Conditioning)

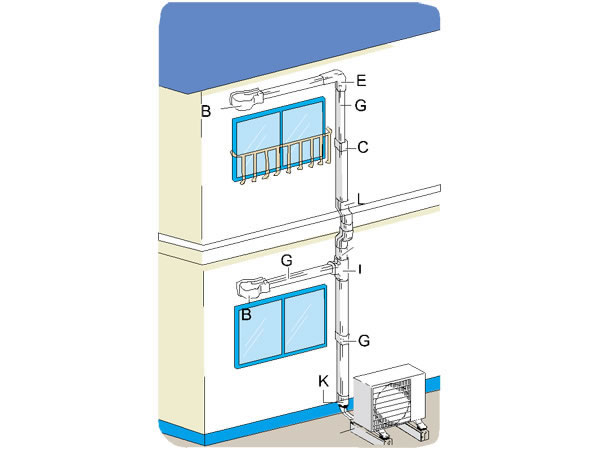

Trunkings and fittings are important parts of the air conditioning ducts. We manufactured a variety of plastic trunkings and fittings for aircons, all of which are made of low density soft nitrile rubber that has low thermal conductivity and is waterproof, wear-resistant, flame retardant, endurable, and environmentally friendly. These PVC trunkings and fittings include corner capswall covers, sockets, elbows, tubes, joints and brackets, which are compliant with international technical standards. The insulation pipes in particular are made of closed-cell foam and are highly resistant to gas. They protect the copper or brass pipes and fittings of the HVAC systems.

Technical Parameters of A/C Duct (Duct for Air Conditioning)

Part No.	Dimension (mm)
	A	B	C	D	E
GA-65A	65	65	66	105	1 10
GA-75A	82	69	66	124	125
GA-80A	86	72	66	134	129
GA-110A	1 18	82	66	181	151

Part No.	Dimension (mm)
	A	B	C	D	E
GA-65B	65	65	200	77	81
GA-75B	82	69	210	94	83
GA-80B	86	72	215	103	85
GA-110B	1 18	82	245	187	97

Part No.	Dimension (mm)
	A	B	C	D	E
GA-65C	65	65	80	-	-
GA-75C	82	69	80	-	-
GA-80C	86	72	80	-	-
GA-110C	1 18	82	80	-	-

Part No.	Dimension (mm)
	A	B	C	D	E
GA-65D	65	65	120	-	-
GA-75D	82	69	124	-	-
GA-80D	86	72	126	-	-
GA-110D	1 18	82	138	-	-

Part No.	Dimension (mm)
	A	B	C	D	E
GA-65E	65	65	137	-	-
GA-75E	82	69	153	-	-
GA-80E	86	72	161	-	-
GA-110E	1 18	82	206	-	-

Part No.	Dimension (mm)
	A	B	C	D	E
GA-65F	65	65	1 18	-	-
GA-75F	82	69	122	-	-
GA-80F	86	72	129	-	-
GA-110F	1 18	82	198	-	-

Part No.	Dimension (mm)
	A	B	C	D	E
GA-65G	59	59	2000	-	-
GA-75G	75	62	2000	-	-
GA-80G	80	73	2000	-	-
GA-110G	1 10	78	2000	-	-

Part No.	Dimension (mm)
	A	B	C	D	E
GA-65H	1 10	1 10	16	-	-
GA-75H	125	1 14	16	-	-
GA-80H	175	145	16	-	-
GA-110H	200	180	16	-	-

Part No.	Dimension (mm)
	A	B	C	D	E
GA-75I	82	69	121	160	25
GA-110I	1 18	75	200	257	30

Part No.	Dimension (mm)
	A	B	C	D	E
GA-75J	75	64	60	550	-
GA-80J	80	67	60	800	-
GA-110J	1 18	70	75	800	-

Part No.	Dimension (mm)
	A	B	C	D	E
GA-65K/75K	68	68	90	82	69
GA-80K/110K	86	72	90	1 18	82

Part No.	Dimension (mm)
	A	B	C	D	E
GA-65L	65	65	180	50	-
GA-75L	82	69	180	50	-
GA-80L	86	72	180	50	-
GA-110L	1 18	82	180	50	-

Part No.	Dimension (mm)
	A	B	C	D	E
GA-350M	350	82	102	95	-
GA-450M	450	82	102	95	-
GA-1000M	100	82	102	95	-
