A temperature panel meter displays the temperature in either a digital or analog form. As panel meters are usually mounted inside an instrument panel, the panel must be cut to accommodate the panel meter. In order to provide interchangeability between panel meters, most temperature panel meters we provide are designed to standard DIN sizes.
To satisfy customers' requirements in different applications, we have provided several types of theseindustrial panel meters, such as the digital temperature panel meter and solar energy panel meter, all of which are made of quality materials and are reliable, durable, and accurate.
Exhibition of Temperature Panel Meter
Main Features
1) Embedded structure, stainless steel shell, LCD screen, clear digital display
2) Wide range of measurement and strong resistance to interference, waterproof
3) Powered by double solar-energy batteries which enable it to work in low lighting
3) Long-term free maintenance
Specification
Mounting size: diameter: 52 mm
75.5mm x Thick 24mm
Technical Parameters
Temperature measuring range: -50℃~80℃ (150℃ is available for customized high temperature sensor)
Resolution: 0.1℃
Accuracy: ±1℃ (-20℃~+80℃), ±2℃ (-50℃~-2℃,+80℃~150℃)
Sampling period: 10s
Sensor wire length: 1m
Power supply: double solar energy batteries
Operation environment: illumination level: ≥100Lux; Humidity: 5%~85%RH
temperature: -20℃~60℃
Main Features
1) Solar-cell power supply without battery
2) Hermetically sealed and water-proof
3) Can be used in wet or damp environments
4) Wide temperature measuring range
5) Highly resistant to interference
6) Indication of exceeding temperature measuring range
Specification
Dimension: 66x30x11.6 mm
Installing hole size: 59.5x26mm
Technical Parameters
Temperature measuring range: -50℃~80℃ (For customized thermometer with special sensors, the measuring range can be -50℃~150℃)
Resolution: 0.1℃
Accuracy: ±1oC(-20℃~+80℃); ±2 ℃ at other range
Sensor length: 1m
Power supply: solar-cell
Operation environment: illumination: ≥100Lux; Humidity: 5%~85%RH
Temperature: -20℃~60℃
Main Features
1) Equipped with LCD display for quick reading of measurements
2) Simple and aesthetic design
3) Powered by two button batteries, able to work continuously for a long time
Specification
Mounting size: 46.2x26.7 mm
Dimension: 48x28.5x16 mm
Technical Parameters
Temperature range: -50℃ ~+80℃
Working environment: temperature: -5℃~50℃; Humidity: 5%~80%
Accuracy: ±1℃(-20℃~+40℃)
Resolution: 1 ℃ (≤-20℃), 0.1℃(>-20℃)
Power: two button batteries (LR44,1.5v)
Sensor: NTC
Main Features
1) Equipped with LCD display screen for quick reading of measurements
2) Simple and aesthetic design
3) Powered by pre-positive battery door for easy installation
Specification
Mounting size: 59.5x25 mm
Dimension: 62.5x29.5x19 mm
Technical Parameters
Temperature range: -50℃ ~ 70℃
Accuracy: ±1℃
Resolution: 1 ℃ (≤-20℃), 0.1 ℃ (>-20℃)
Power: 1.5VDC button battery(LR44)
Sensor: NTC

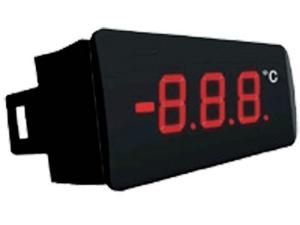

Main Features
1) Equipped with a clear LED display screen
2) Resistant to interference of lights
3) Designed with an insert panel
4) Attached with a sensor wire as long as 50m, convenient to measure temperatures of objects far away from the panel
5) Wide temperature measuring range and high measurement accuracy
6) Displaying " EEE" for sensor error (short or open circuit), "HHH" for temperature >+110℃ and "LLL" for temperature <-30º
Specification
Mounting size: 59x26 mm
Dimension: 64x31 mm
Technical Parameters
Power supply voltage: 220VAC±10%
Watt consumption: <3W
Measurement display range: -30℃ ~ 110℃
Accuracy: ±1℃
Sensor: NTC
Main Features
1) Simple and aesthetic appearance
2) Waterproof
3) Displaying "EEE" for sensor error (short or open circuit), "HHH" for temperature >+110℃ and "LLL" for temperature <-30º
Specification
Mounting size: 58.4x25.7 mm
Dimension: 64x31 mm
Technical Parameters
Temperature range: -50℃ ~ 80℃
Accuracy: ±1 C (-20℃~40℃)
Resolution: 0.1℃ (when temperature< 100℃), 1 ℃ (when temperature ≥100℃
Safe level: IP65
Sensor: NTC sensor
Operation temperature: 0℃~60℃
Relative Humidity: 20%~85% (no condensation)
Power supply voltage: 220VAC+10%-15% 50Hz
