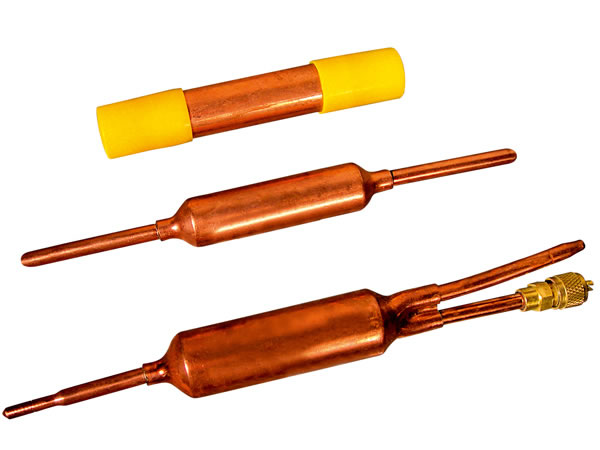

This copper spun filter drier is used to get rid of contaminants such as moisture, acid, copper oxides, metal chips, and wax compounds within the refrigerating equipment. Made of quality copper which undergoes advanced hot extrusion processes, this receiver drier can be used in refrigerators that use R12, R134A or a capillary tube flow restrictor and other fully hermetic refrigerating systems.
We have developed several types of this reliable HAVC receiver drier for use with refrigerants R22, R134A, R600 and R410A. The zeolites, inlet and outlet pipes as well as the overall length of the drier can be adjusted to fit customers' requirements, making this an ideal filter for your equipment.
Technical Specifications of Copper Spun Filter Drier
| Part NO. | O. D.(inches) | Inlet (inches) | Outlet (inches) | Desiccant Weight (gram) | Figure |
| 3/4 | 1/4 | 1/4 | 10 | A | |
| 3/4 | 1/4 | 1/4 | 10 | B | |
| 3/4 | 1/4 | 1/4 | 15 | A | |
| 3/4 | 1/4 | 1/4 | 15 | B | |
| 1 | 1/4 | 1/4 | 25 | A | |
| 1 | 1/4 | 1/4 | 25 | B | |
| 1 | 1/4 | 1/4 | 10 | C |
